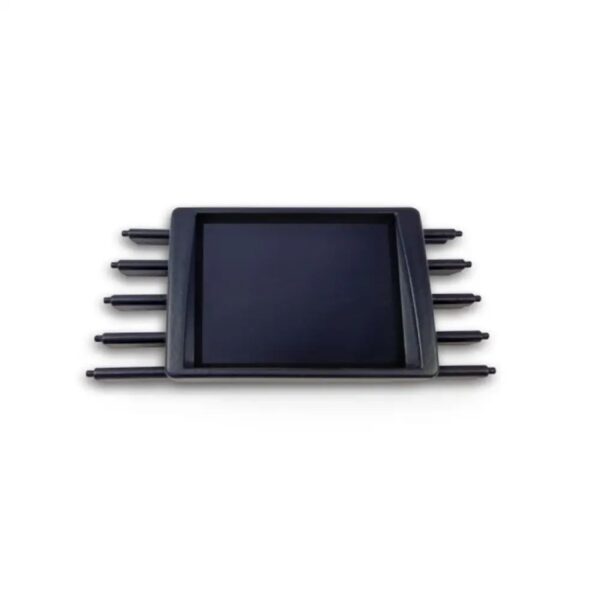

CANchecked MFD28 Gen2 for BMW E60/61 5 Series

The CANchecked MFD28 Gen2 is a compact, high-performance digital display designed for the BMW E60/E61 5 Series. Available in both left-hand drive (LHD) and right-hand drive (RHD) versions, it provides real-time data monitoring with full CAN Bus integration while fitting neatly into the interior with an OEM-like finish.At its core is a 2.8″ TFT capacitive touchscreen with sharp graphics and intuitive controls, framed by a high-quality milled aluminium bezel for durability and premium aesthetics. Thanks to its symmetrical design, the display can be rotated 90°, giving you the flexibility to mount in portrait or landscape orientation.The MFD28 Gen2 is fully customisable via CANchecked’s DSS (Display Setup Software), allowing you to configure up to 10 pages with 64 widgets per page. It supports up to 128 sensors from the CAN Bus and internal sources, meaning you can monitor everything from boost and AFR to oil pressure, fuel pressure, and EGT. With 4 analogue inputs (0–5V), the system is ready for additional aftermarket sensors, while support for UDS, KWP2000, OBD, TP2.0 and standalone ECU protocols ensures broad compatibility.A built-in CAN Bus Logger makes protocol analysis straightforward and allows for reverse engineering of unknown CAN data streams. The unit also features CAN Bus Switching functionality for controlling external devices, plus the option of integrating an external shift light for motorsport or performance applications.Key Features2.8″ TFT capacitive touchscreen for responsive controlPremium aluminium frame with robust build qualitySymmetrical design for 90° rotation (portrait/landscape)Customisable via DSS software – up to 10 pages / 64 widgets per pageSupports up to 128 sensors via CAN Bus and internal inputs4 analogue 0–5V inputs for oil/fuel pressure, boost, EGT, etc.Optional external shift light integrationCAN Bus Switching functionality for external device controlSupports multiple CAN Bus protocols: UDS, KWP2000, OBD, TP2.0, standalone ECUsBuilt-in CAN Bus Logger for recording and analysisCompact installation: 70.3 x 52mm with secure front-mounting and Torx screwsConnectivity & ExtensionsExpand the MFD28 Gen2 with CANchecked add-ons for even greater functionality:CANchecked sensors for water/oil temperatureCANchecked sensors for oil/fuel pressureCAN Bus Extension (MCE18)CAN Bus Hub (CBD08)CompatibilityBMW 5 Series (2003–2010)E60 – 5 Series SaloonE61 – 5 Series TouringAvailable for both LHD & RHD models.
